### Automatic Door Servo Motor and Control Box System
Model No.: Hf-Q5374
Brand: Hongfa
Function: Other
Certification: Other
Demoulding: Automatic
Condition: New
Warranty: 12 Months
Automatic Grade: Automatic
Installation: Other
Driven Type: Electric
Mould Life: 300,000-1,000,000 Shots
Hz: 50-60Hz
Packaging: Wooden Case, carton
Productivity: 10000 sets/year
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 1000 sets/month
Certificate: ISO9001 SGS CE
HS Code: 73083000
Port: Shenzhen,China
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Introducing our premium Automatic Door Servo Motor and Control Box, designed for professionals seeking seamless entry solutions. This robust system combines a high-torque servo motor with a sophisticated control box, ensuring smooth and reliable door operation. Equipped with advanced sensors and customizable settings, it adapts to various door types and environments. Ideal for commercial and industrial spaces, this durable and efficient system enhances accessibility and security. Experience the future of automated access today.

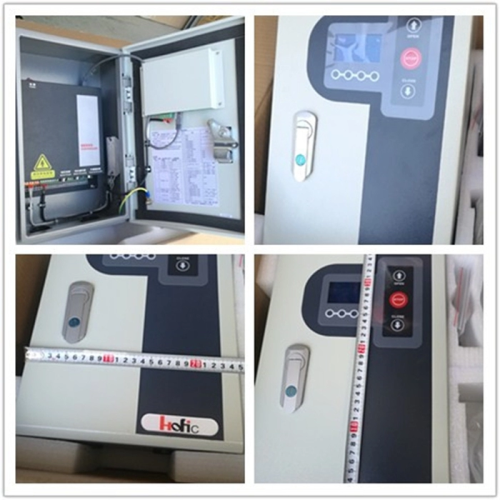

Servo Motor And Control Box
Motor Specifications
| Model | PE200 | PE2000 | PE500 |
| Rated output | 750W | 750W | 1500W |
| Speed | 0-2000rpm | 0-2000rpm | 0-2000rpm |
| Rated output speed | 0-200rpm | 0-260rpm | 0-200rpm |
| Maximum Torque | 100N.M | 75N.M | 150N.M |
| Rated torque | 35N.M | 30N.M | 50N.M |
| Temperatuer rise | <30°C | <30°C | <30°C |
| Operating Temperatuer | -40°C-60°C | -40°C-60°C | -40°C-60°C |
| Torque managment systerm | Torque servo systerm | Torque servo systerm | Torque servo systerm |
| Adaptation door area | 2-20 square meter | 2-15 square meter | 2-35 square meter |
| Limit mode | Absolute Encoder | Absolute Encoder | Absolute Encoder |
| Manual release | lectro mechanical hand wheel/winch | ||
| Self-locking mode | Electro mechanical brake | Electro mechanical brake | Electro mechanical brake |
| Weight | 10kg | 10kg | 28.8kg |
What's the feature of the servo motor?
| precision | the systerm use full closed-loop servo control and double encoder design ,this is to ensure long operating life and to prevent overshooting during operating |
| stability | the systerm utilizes integrated design concept ,in order to simplify internal wiring and to prevent malfunction cause by wiring and terminal connections |
| high speed | motor max speed is 2500rpm ; door max operating speed is 2m/s |
| smooth | the torque servo systerm can adjust torque to the load automatically ,and its use S speed curve mode step less speed regulating to ensure a smooth operation. |
| custom-made | each systerm's operating control order and mode can be custom made to suit each door ,to ensure max operating condition . The systerm has a unique order and more memory mode and one key recover mode. |
| safety | the systerm has a build in emergeny stop signal and control order ,the motor can be ativated within 30 millsecond after receive the order ,to ensure maximum safety. |
| high usage | the systerm is benign to suit continuous high usage,and it can applied to high frequency high speed passage way . |
| energy efficiency | the rare earth permanent magnet synchronous motor utinizes rare earth PMSM'S output and overload are twice higher han the asynchronous motor ,also compare to the asynchronous motor, the rare earth PMSM is more energy efficient ,lighter, has a slower heating rate ,and bigger torque. |
What service you can get from us ?
1) OEM service for you and your clients .
2) Arrange the shipment for you to everywhere .
3) CE / ISO-9001 / SGS Certification
4) Installation video or instruction for you.
5) Available suggestion about the correct doors.
6) Professional service supporting with different language , email or phone calling .
7) Operating guidance and instruction after installation .
8) Professional / Tirelessly after-sales service .
9) 12 Months warranty for all doors and accessories.
Product Categories : Door Accessories > High Speed Door Motor And Control Box
