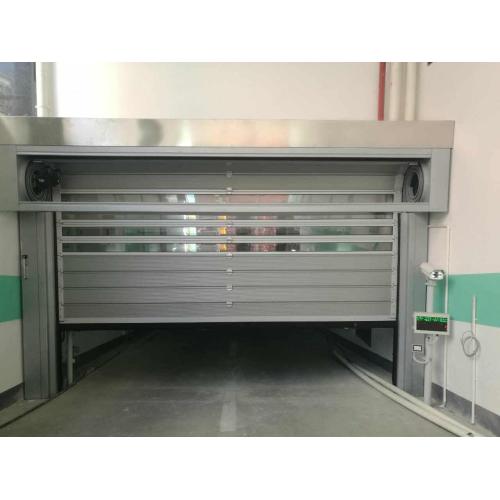

Automatic High speed turbo door

"Boost Efficiency with the Automatic High-Speed Turbo Door"

Payment Type:
L/C,T/T,Paypal,Western Union
Incoterm:
FOB,CFR,CIF,FCA,CPT
Min. Order:
1 Set/Sets
Transportation:
Ocean,Land,Air
Port:
ShenZhen,GuangZhou,HongKong
Share:
  • Product Description
Overview
Supply Ability & Additional Information

Packagingwooden case

Productivity1-100sets

TransportationOcean,Land,Air

Place of OriginChina

CertificateISO9001, CE

HS Code73083000

PortShenZhen,GuangZhou,HongKong

Payment TypeL/C,T/T,Paypal,Western Union

IncotermFOB,CFR,CIF,FCA,CPT

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
wooden case

Introducing the Automatic High Speed Turbo Door – designed for efficiency and safety. With its rapid opening and closing capabilities, this door minimizes energy loss and maximizes throughput in busy environments. Equipped with advanced safety sensors, it ensures a secure and hazard-free passage. Ideal for commercial spaces, factories, and high-traffic areas, this door offers durability, reliability, and ease of use. Upgrade your facility's access control with our state-of-the-art Turbo Door today!

Strong and operate smoothly High Speed Door- turbo door. Please see below for more information:


The high speed doors offers high-speed operation for high - traffic situations and rigid aluminum slat construction that eliminates the need for a second security door. Among high-speed doors, The hard high speed doors is revolutionary: Two door systems have been combined in a single design. It is a burglar-proof, weather-proof, high- speed exterior door to meet different demands. The hard high speed doors is an extremely fast, safe and reliable exterior doors. The door panel consists of double wall aluminum laths, thermally separated profiles provide for the best in heat insulation. Any require light entry will be constructed as necessary from multi-clearview laths of Acryglas. The widest range of equipment and extensive accessories distinguish the high-speed sprial doors as the model for the today's door technology.




Technical Specifications

NO. Item Index
1 Size ranges  Width 2000mm~6000mm; Height 2000mm~6000mm
2 Open control ways controled by control box--Control Options: radar, geomagnetic sensor, Bluetooth RF sensor, remote sensing, pull rope switches and other control methods
3 Drive system German SEW motor, Holip Inverter, Kewei plc (Mitsubishi technology)
4 Heat preservation performance at least be K ≤ 1.7W/ (m2K)
5 Air tightness 8.68m3 / (m2 h), reached the national standard grade 3
6 Water tightness ≤700Pa, which reached the national standard grade 6
7 Color optional grey, aluminum primary color, white, red, beige, etc.
8 Opening and closing speed Opening speed:0.8 ~ 1.5 m/s (adjustable);
Closing speed: ≥ 0.6m/s,( 56270659, 54507786,adjustable)
9 Wind resistance 3.5 k Pa, reached grade 6 of the GB; Wind resistance grade 12 (120km/h)



spiral door

high speed spiral door



Benefits of High Speed Door

1)Saves energy and time by opening and closing the door's opening up to 12 times faster than a traditional sectional overhead door.

2)Allows the same exterior door to be used in both warm & cold weather situations.  Allow air to flow through in summer and keep heat in during cooler months.

3)Significantly reduces heat loss while allowing light into work areas.

4)Keeps out unwanted pests, birds and intruders.

5)Controls airborne contaminants.

6)Improves building appearance.


Feature of HongFa High Speed Door Include:
High speed  Doors require little maintenance and automatically reset after impact or blowout.High speed  Door  also has easily replaceable, exchangeable heat sealed PVC panels

High Speed - Up to 60 inch" per second(adjustable)
Low Maintenance - Aluminium alloy reinforce Girder is loaded between 2 pieces Curtain, can be replaced easily if any curtain broken , save your cost.
Windproof Aluminum alloy reinforce bar won't bend or break. Automatically resets after impact or blow-out,Wind load ratings by door size
Durable -  Resistance to all rot, tear and mildew resistant,
Quick & Easy Installation - Installation video and instruction for you
Very Safe-Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.
Curtain replacement function-Easily replaceable, exchangeable heat sealed PVC panels.
Warranty-12 Months warranty on all door and accessaries

Applications Include:

1)Loading Docks

2)Fork Truck Traffic Areas

3)Garages

4)Interior & Exterior Door Openings

5)Food Processing Facilities

6)Process Areas

7)Waste Areas

8)Plant Overhead Doors
