Flexible lift gate with rational layout

Introducing the FlexiGate Pro: Designed for professionals, our innovative lift gate boasts a rational layout that maximizes usability and efficiency. Engineered with durability in mind, it features a robust, flexible design suitable for various heavy-duty applications. The intuitive layout ensures seamless operation, enhancing productivity on the job site. With customizable compartments and enhanced security features, FlexiGate Pro streamlines your workflow, providing unparalleled access and organization. Elevate your operations with a lift gate built for the modern professional.

Flexible lift gate with rational layout

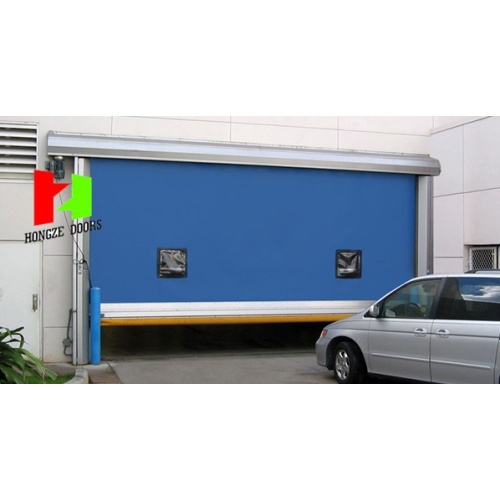

Flexible lift gate is a flexible soft curtain door, inside and outside the two curtains, curtains used between the aluminum beams connected with a vertically movable rai;, the roof beams have levels not in the same straight line and hangar large plants in particular be applicable. Flexible lift door installation does not take up interior space in the hole inside.When the first move to open the door, and finally superimposed over the hole. Off event curtain rail first and then fall down until it is completely closed.

 There are some details about the flexible lift gate:

Other parts:

• Free –fall protection against accidental falling of the door, are activated airing each opening and closing operation and they also lock the door in the closed position.
• The motor is fitted with a hand operated brake release and an additional outgoing shaft for emergency operation via a crank.
• When the door is closed its total weight is distributed between the fixing points. The distance between fixing points is about 1000mm. the door leaf itself does not weight more than 40 to 80 kg    per meter width, but, in view of the extra load which may result in the event of a collision.
• Wind load is transferred to the vertical guide rails by the horizontal aluminium sections of the door leaf. The fully-welded vinyl coated polyester fabric prevents the intermediate sections from flopping or twisting.
• Lubrication-free guide rollers, which travel in the guide rails, are provided at each end of the door leaf sections.     The hoist belt is wound onto a belt drum to raise the bottom section. The belt drum is mounted the total load on the building should be calculated at 1.5 KN/m.

The load of the door leaf if successively transferred to the ends of the machine box as the door is opened. In this situation the weight of the machine box only is supported by the remaining fixing points.
