"Open Sesame in Record Time: Cold Storage Doors That Leave Icy Entrances in the Dust!"
Model No.: HF-W7551
Brand: Hongfa
Material: Stainless Steel
Type: Rolling
Open Style: Rolling
Opening Type: With Remote Control
Special Function: Security
Color: Red
Certification: CE
Position: Industrial
Surface Finishing: Finished
Size Available: Color Available
Packaging: Wooden case
Productivity: 8000 sets/year
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 800 sets/month
Certificate: ISO9001 SGS
HS Code: 73083000
Port: Shenzhen, China
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Introducing the Cold Storage Rapid Door, designed specifically for professional environments requiring exceptional efficiency and temperature control. With ultra-fast开门速度快至0.5米/秒，我们的快速冷库存门可显著减少温度波动，提高能源效率。采用耐用材料和先进密封技术，确保长期稳定运行，同时保持严格的卫生标准。适用于食品加工、制药和物流等关键领域，提升操作效率并降低运营成本。适用于-30°C至+60°C的广泛温度范围。立即升级您的冷链管理。 Translation: Introducing the Cold Storage Rapid Door, designed specifically for professional environments requiring exceptional efficiency and temperature control. With opening speeds up to 0.5 meters/second, our rapid cold storage door significantly reduces temperature fluctuations, enhancing energy efficiency. Made from durable materials and featuring advanced sealing technology, it ensures long-term stable operation while maintaining strict hygiene standards. Ideal for critical sectors such as food processing, pharmaceuticals, and logistics, it boosts operational efficiency and lowers operating costs. Suitable for a wide temperature range from -30°C to +60°C. Upgrade your cold chain management today.

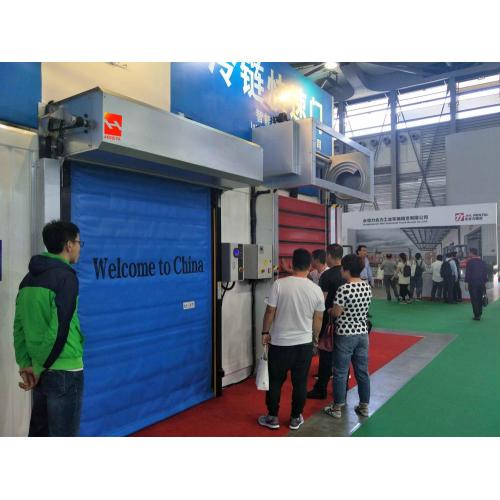

Cold Storage Rapid Door
1. Insulation Device
2.Anti- Collision Structure
The curtain can be derailed and automatically reset during the ascent when it happen to a accident without manual repair or control unit reset.
| Technical classification | Technical Parameters |
| Heating antifreeze device | The design and application of the heating mechanism avoids the freezing of the guide rail caused by the heat exchange caused by the frequent operation of the door body, further ensuring stable operation and working efficiency of the door body in a low temperature environment. At the same time, it is possible to install and remove the box equipment according to the needs, and doublely guarantee the working performance of the product in a low temperature environment. |
| Collision recovery structure | In the event of an accidental impact, the curtain can be derailed and automatically reset during the ascent, without manual repair and control unit resetting. |
| Opening speed | Opening speed 0.6-2.5M/S, and can be set |
| Closing speed | Closing speed 0.6-1.2m/S, and can be set |
| Curtain | High-strength environmentally-friendly polyester fiber material is added with tear-resistant fabric in the middle. The overall thickness of blue and full-soft curtain is not less than 1mm. The tensile strength is high and the wear resistance is good. There is no friction between the curtains to generate static electricity to attract dust. Fill the insulation material. Applicable temperature: -30~+70°C. |
| track | The track is made of stainless steel and galvanized paint, and the surface is spray-coated to prevent rust. |
| Door component insulation protection | The control box and other components must meet IP54 and above, and meet the national electrical safety standards, even in harsh environments can be waterproof and dustproof. |
| Drive System | The professional industrial door HOFIC motor system consists of: high-speed motor for fast door, power supply 220V, power 0.75kw/750 rev / S, carrying large load S4 type. Loss of electric brake system; reducer; manual release mechanism; fault manual device, etc., motor constant torque output: 1, the overload capacity is strong, in some high-frequency occasions, the switch can work more than 2000 times a day. 2.The high resolution resolution of the 2,2000 lines and the fast response of the motor effectively avoid the problem of cumulative errors. 3. The manual release mechanism can be released during a fault or power failure, and the door is manually opened or closed to have an ideal position. |
| Control system | Using a dedicated (HOFIC) servo system, the core is a DSP chip, and the system receives incremental encoder signals and machinery at the rear of the motor. The home position switch signal is used to set the door opening height: 1. The system displays the fault code function through the LED tube; 2, steering protection: when the motor drive line is connected incorrectly, the controller reports an error directly, and the door does not move; 3, the torsion ring, the position ring, the speed ring and the three rings are fully closed; 4, capable of braking function, without the electromagnetic brake pad, the motor can be stopped at the expected position, so that the door body stops at the limit position When it is not bad; |
The soft curtain anti-collision fast door has simple structure design, which is beneficial to stable operation, reduces the frequency of repairing and replacing wearing parts, effectively improves the durability and service life of the equipment, and the curtain can be derailed in the event of an accidental impact, and during the ascent Automatic reset, no need to manually repair and reset the whole process.
Heating devices are included on both sides of the column.
The structural design of this product is characterized by trouble-free operation up to 150,000 times per year. It has the highest practicality and the lowest maintenance cost.
F A Q
1. What's the payment details?
Deposit before production, and balance before shipment.
2. What's the delivery time?
For common order, about 7 days only.
3. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.When the product quality appear.
4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
5. What's the MOQ?
We accept 1 set as sample order.
6. How about the package?
Plywood case or Cardboard, suitable for sea freight or air freight, as your request
Product Categories : High Speed Door > Cold Storage Room Fast Door
