"Maximize Space and Security with Rapid Roller Shutter Stacking Doors"
Model No.: HF-JA64
Brand: HongFa
Material: Stainless Steel
Type: Rolling
Open Style: Rolling
Opening Type: Power Driven
Special Function: Soundproof
Color: Red
Certification: CE
Position: Industrial
Surface Finishing: Finished
Motor Choice:: 1.German Sew 2.China Sej / Snma
Control Panel:: Japan Mitsubishi Danmark Danfoss
Command System:: Radar Sensor, Magnetic Loop , Remote Control, Push
Installation Base:: Concrete,Panel, Brick,Steel Structure.
Safety Device:: Photocell Sensor(Korea Autonics)
Size:: According To Your Order
Quality Warranty:: 12 Months
Normal Working:: -35 To 65 Celsius Degree Standard
Motor Position:: Left Or Right
Packaging: Plywood case or Cardboard , suitable for sea freight or air freight
Productivity: 300 Set/Sets per Month
Transportation: Ocean,Land,Air
Place of Origin: Guangdong, China (Mainland)
Supply Ability: 300 Set/Sets per Month
Certificate: CE SGS ISO:9100
HS Code: 73083000
Port: Shenzhen
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Introducing the Rapid Roller Stacking Door – the ultimate solution for modern professionals! Designed for efficiency and style, this door combines sleek aesthetics with unmatched functionality. Its rapid operation节省了大量时间，提升了工作效率。适用于仓库、工厂及大型商业空间。坚固耐用，操作静音，确保安全的同时提供无缝体验。立即升级您的工作环境！

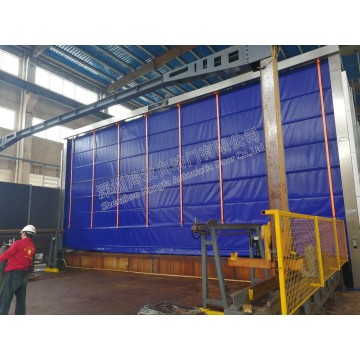

Rapid Roller Shutter Stacking Door
Rapid Roller Shutter Stacking Door has various functions such as heat preservation, cold preservation, insect proof, windproof, dustproof and soundproof. It is widely used in underground parking lots, industrial plants, food, textile, electronics, printing and packaging, automobile assembly, precision machinery, logistics and warehousing.
The Rapid Roller Shutter Stacking Door, imported advanced technique of production by Shenzhen Hongfa Automatic Door Company, endowed with versatile functions of thermal and chill insulation, anti-insect, windproof, anti-dust, soundproof, anti-fire, anti-odor and natual lighting, which are widely used in food, chemistry, textile, refrigerating, electronics, printing, supermarket, assembly, precision machinery, logistics and warehousing among other air conditioned workshops and cleaner production factories, it is also creates higher energy and operation efficiency for a better operation environment.
It can meet high-performance logistics and cleaning workshops, save energy and improve air conditioning. High-speed automatic opening and closing, improve work efficiency and environmental quality. Fast stacking doors are suitable for larger doors and can withstand wind speeds above 10 degrees.
Product Detail
| Technical classification | Technical Parameters |
| Door body | High-strength polyester fiber with soft epoxy resin on the surface |
| Degree of tear resistance | 500N |
| Low temperature cracking temperature | -20 degree anti-corrosion, anti-ultrtaviolet; horizontal reinforcement rod strenthens the door body, wind pressure resistance 200N/m |
| Size range | 4-10m wide and 4-10m high |
| Sealed and isolated | Anti-aging seal around the door, heat conduction system K=5w/m2°C |
| Noise attenuation | ≤20dBA |
| Power and control | 230V/400V, single or three phase, 50Hz |
| Power | 0.75KW-4.0KW; manual, button, drawstring, remote control, photoelectric switch, metal detection and radar, etc. |
| Running speed and time control | Switching speed: 0.6-1.5 m / sec, closing time can be adjusted: 5-30 seconds |
| Safety protection | Safety protection device such as photoelectric switch, contact sensing edge and warning light |
The more detail:
1. Windproof pole
The joint of the curtain is equipped with steel pipe or aluminum alloy wind and windproof strip to increase the wind resistance effect.
2. Ring
It is painted with galvanized steel and is beautiful, durable and wear resistant. Using advanced welding technology, the material is durable, not easy to desold, broken.
3. Brush
The built-in brush on the guide rail can play the role of dustproof and sealed.
4. Perspective window
The middle is provided with a horizontal PVC transparent window with a thickness of 1.2mm, making it safer for vehicles and vehicles to enter and exit.
Our Certificate
1. What is the payment details?
Pre-production deposit, balance before shipment.
2. What is the delivery time?
For ordinary orders, it only takes about 7 days.
3. How about the door warranty?
We offer a 12 month warranty for all doors and accessories. When product quality occurs.
4. Do you offer OEM services?
Yes. OEM and ODM services are no problem for us.
5. What is the minimum order quantity?
We accept 1 set as a sample order.
How about the parcel?
Plywood casing or cardboard, suitable for sea or air transportation, according to your requirements.
