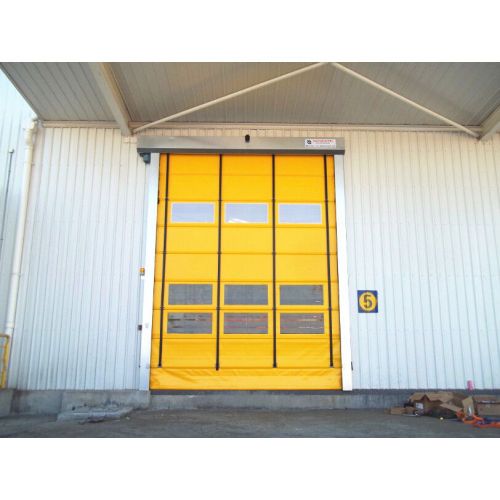

Automatic High Speed Fold-up Door PVC Stacking Door

Introducing our Professional High Speed Fold-Up PVC Door, designed for enhanced efficiency and durability in busy commercial environments. Featuring rapid opening and closing speeds, this door minimizes temperature loss and drafts. Constructed from robust PVC material, it ensures long-lasting performance and easy maintenance. The fold-up design maximizes space utilization, while providing excellent insulation and noise reduction. Ideal for warehouses, factories, and logistics centers, it boasts quick installation and minimal downtime. Elevate your workspace with advanced functionality and unmatched reliability.

High Speed Fold-up Door Windproof PVC Stacking Door

Hongfa stacking door/fold-up rapid door has an opening speed of 0.5 m/s-1.2m/s and has a good performance of wind-resistance up to a class 6 wind load, thanks to horizontal bars fitted into pockets welded to the curtain. Rapid Fold-up doors are therefore highly suitable for more exposed locations.

 This door is designed for continual use, facilitated by a 220V/380V supply to the control board. It is therefore an ideal solution for an opening in a busy environment which need to pass quickly, such as workshops of food processing, pharmaceutical factory, electronic factory, printing, cigarette etc. Factory workshop and warehouse, and logistics parks and so on.

We are able to install the door both internally and externally in accordance with your preference and as the column section is finished with a rubber seal that protects the curtain, you should not need to see us again for a long time after that, as it reduces the need for maintenance.

All Rapid Fold frames and covers are made from stainless steel, or alternatively can be custom-ordered in aluminum alloy and S.S painted various RAL colours to suit your preference.

---Features:

1) The drive

Uses the Taiwan SNMA branch electrical machinery, power source 220V, power 0.75kw, the load bearing shoulders S4 greatly.

2) The electrically controlled system

Uses the Danish Denver Si high performance promotion control box, in sets at the vector control pattern, the control precision is high; The high torque frequency changer (150%1HZ), PLC combines, has the high performance, the redundant reliability, the high stability, high characteristics ,high accurately localization. Simultaneously utilizes the frequency conversion control technology, has the soft start, slow stop function, guarantee door body revolution steady increase service life.

3) Operation speed

0.4-0.8m/s opening speed (adjustable). High frequency opening(1000-1500/day)

4) Safety device

Lower part the doorframe installs infrared photoelectricity protection switch one pair, under the gate body pauses when the human and the object block the photoelectricity, gate body not whereabouts.(South Korean Otto Nix)

5) The wind resistant effect

Curtain cloth engagement spot is loaded with the wind steel tube, the increase wind resistant effect.

---Technical classfication:

---Product details:

1. Air duct

The joint of the curtain is equipped with steel pipe or aluminum alloy wind and windproof strip to increase the wind resistance effect.

2. Ring
It is painted with galvanized steel and is beautiful, durable and wear resistant. Using advanced welding technology, the material is durable, not easy to desold, broken

3. Brush
The built-in brush on the guide rail can play the role of dustproof and sealed.

4. Perspective window
The middle is provided with a horizontal PVC transparent window with a thickness of 1.2mm, making it safer for vehicles and vehicles to enter and exit.

Our certificates:

--Advanced technology and workmanship

FAQ
