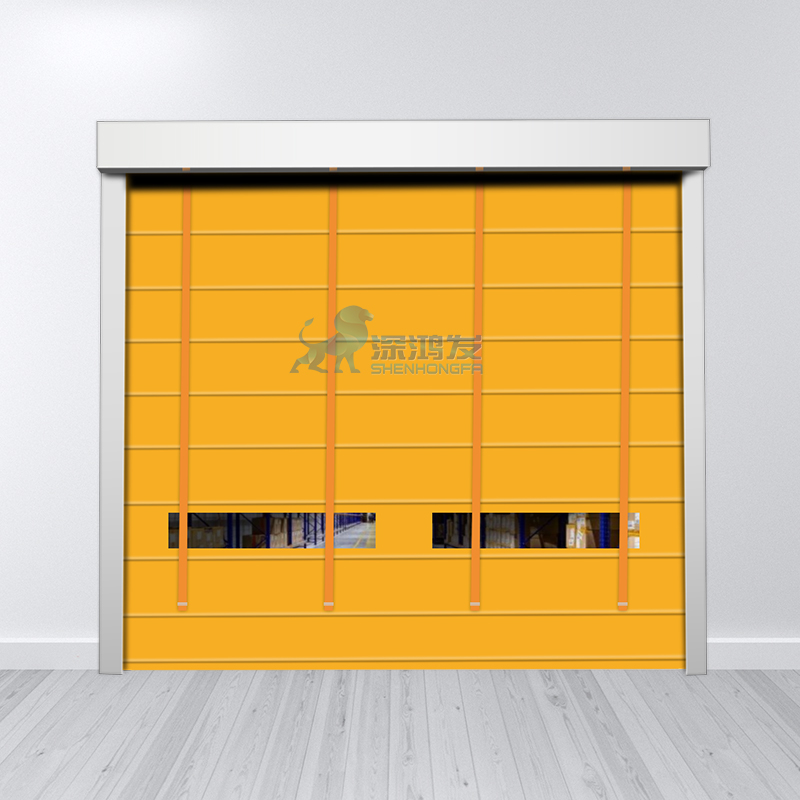

Industrial Automatic Aluminum Stacking Garage Door

Industrial Stacking Door Product Details

Industrial stacking doors are high-performance solutions designed for demanding environments requiring rapid access, energy efficiency, and durability. Below is a comprehensive overview of their key features and specifications:

1. Structural Design & Materials

Frame & Housing: Constructed with cold-rolled steel (2.0–2.5mm thickness) or corrosion-resistant aluminum alloy (3.5mm 6063 grade), surface-treated with electrostatic powder coating for enhanced durability and aesthetics.

Curtain Fabric: Made of high-density industrial-grade coated polyester fabric (0.8–2.0mm thickness), offering exceptional tensile strength (4,000/3,500 N warp/weft), tear resistance (600 N), and flame-retardant properties. Optional transparent PVC windows (1.0–2.0mm) enhance visibility and safety.

Wind Resistance: Reinforced with horizontal aluminum alloy or steel anti-wind bars, enabling resistance to gusts up to 17.1 m/s (Level 7).

2. Performance & Functionality

Speed: Operates at 0.3–1.5 m/s (opening) and 0.3–1.2 m/s (closing), with soft-start technology to reduce mechanical stress.

Sealing System:

Bottom Seal: Elastic PVC air-tight skirt adapts to uneven floors, achieving dust/insect-proof standards.

Side Seals: Double-layer brush or rubber strips ensure airtight isolation, blocking 99% of airflow, dust, and noise.

Safety Features: Infrared sensors, emergency stop mechanisms, and bottom safety edges (optional airbag) prevent collisions. Red warning lights signal door movement.

3. Power & Control Systems

Motor: Equipped with IP55-rated motors (0.75–5.5 kW), supporting 220V/380V power and manual override during outages.

Control Options: Programmable logic controllers (PLC) and frequency inverters enable customizable operation via radar, RFID, push-button, or interlocked systems. Optional integrations include license plate recognition and facial recognition.

4. Applications

Ideal for:

 Industrial Facilities: Warehouses, manufacturing plants, and logistics centers requiring rapid forklift access.

Specialized Environments: Food processing, pharmaceuticals, cold storage (-40°C to +70°C operating range), and cleanrooms needing temperature control.

Outdoor Installations: Wind-prone areas like ports or coastal sites due to superior weather resistance.

5. Customization & Compliance

Sizes: Tailored to large openings up to W5m × H15m.

Certifications: Complies with fire safety and industrial standards, ensuring reliability in harsh conditions.

For full technical specifications or tailored solutions, refer to manufacturer datasheets.
