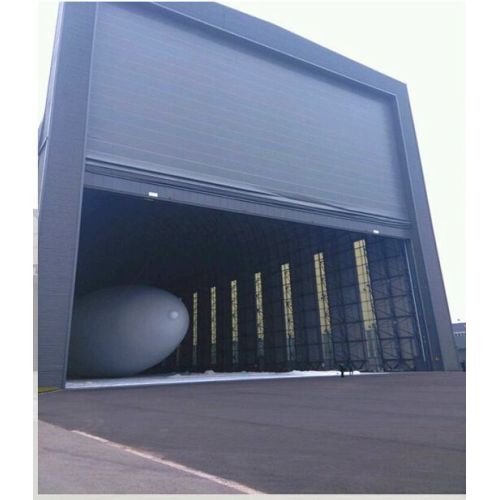

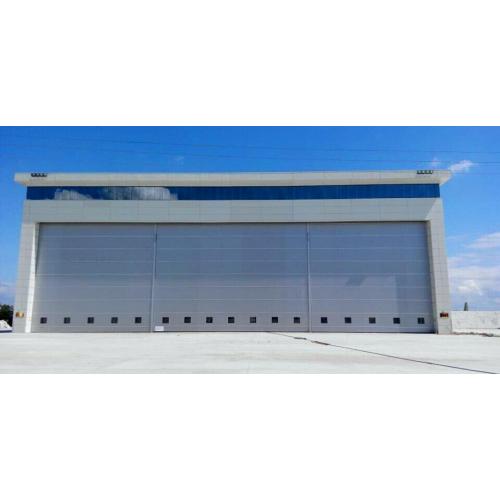

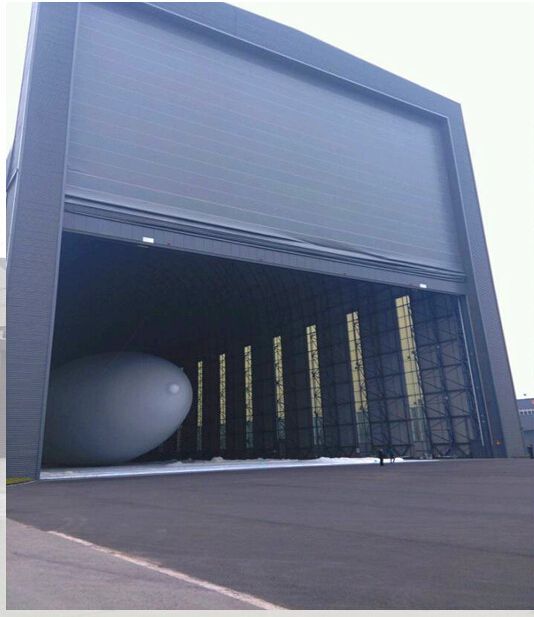

Mega Hangar Large PVC Anti-Wind Stacking Door

Introducing the Mega Hangar Large PVC Anti-Wind Stacking Door – where fortress meets flexibility! Say goodbye to flimsy doors and hello to storm-proof security. Crafted from top-grade PVC, this door not only withstands gale-force winds but also keeps your hangar looking like a million bucks. Its innovative stacking design means you can open up your space in seconds, turning your hangar into a grandstand for your awesome aircraft. Perfect for professionals who mean business and want to make an entrance!

Mega Hangar Large PVC Anti-Wind Stacking Door

1: Design conditions
a: Wind level: standard wind pressure 55kg / ㎡, the safety factor of 1.4, that is, the maximum design wind pressure of 77kg / ㎡
b:  Rise speed: 6 m / min
c: The curtain has anti-aging and wear-resistant properties
d: The whole door sealing performance is very good
e:  Double curtain insulation
2:  Design
a: The main principle of pulling the curtain
this type of door is using the traditional technique: horizontal curtain double-layer stacking, double-sided curtain spacing of about 400mm-700mm
b:  The composition of the curtain
The curtain is made of double-sided industrial belt (high-polymer fiber warp knitted fabric and PVC coating composite) and ribs; ribs can be composed of steel frame structure plus aluminum fixed parts.
c: power system
Power system consists of a group of motors, reducer and brake system components, will use flexible door dedicated motor.
d: Control System
  The control system consists of a motor control system and a motor overload protection system, all of which are assembled in a control box.
e: Security system
When the opening process or power failure, by the power system in the braking system to provide adequate braking force to prevent any circumstances under the curtain sliding, sling the strength of the security system is 5 times, in the case of lifting the tape break, the configuration Automatic hook anti-fall system, can effectively prevent the door to fall.
f: Sealing system
In order to ensure the integrity of the sealing system, a brush seal is used between the curtain and the sliding door

FAQ of Stacking Up Large PVC Stainless Steel Tube High Speed Door

Q1. How many workers in the factory?
A: We have more than 50 workers.
Q2. What`s the monthly capacity?
A: Our capacity is 100set per month.
Q3. What`s the standard of the material quality?
A: Our doors can pass ce,SGS,iso9001.
Q4. The high speed door size can be customerized?
A: Yes,just send us the size you prefer.
Q5. Can I have a sample for quality check?
A: Yes, we can provide sample
Q6. What is the minimum quantity for each order?
A: Normally 1set,but we also support a small quantity if you can accept a higher price.
Q7. What is the production time ?
A: Normally it is 7days,depending on how many orders before you.
Q8. What is the payment term?
A: Our payment term are T/T and L/C at sight.
Q9. How do you gurantee the quality?
A: Our product is guaranteed for one year, and any quality problems during this period are supported by free maintenance. Of course, the rate of maintenance is below 1%.
