Cold storage high speed door

"Chill Out Faster: Our High-Speed Cold Storage Doors — Because Waiting Is (Not) For Winners!"

Payment Type:
L/C,T/T,Paypal,Western Union
Incoterm:
FOB,CIF
Min. Order:
1 Set/Sets
Transportation:
Ocean,Land,Air
Port:
ShenZhen,GuangZhou,HongKong
Share:
  • Product Description
Overview
Supply Ability & Additional Information

Packagingwooden case

Productivity1-100sets

TransportationOcean,Land,Air

Place of OriginChina

CertificateISO9001, CE

HS Code73083000

PortShenZhen,GuangZhou,HongKong

Payment TypeL/C,T/T,Paypal,Western Union

IncotermFOB,CIF

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
wooden case

Introducing the ultimate cold storage solution: our High Speed Door. Designed for efficiency, it opens and closes in just seconds, minimizing temperature loss and saving energy. The durable, insulated panels maintain a consistent cool environment, ideal for walk-in freezers and refrigerators. Its quick operation reduces humidity ingress, preventing condensation and frost build-up. Engineered with safety sensors and low-temperature seals, this door ensures a secure and seamless cold storage experience. Upgrade your cold room with our High Speed Door for unmatched performance and reliability.

If you want to choose a economic and energy-saved door solution for your cold room, please see below and know more about high speed cold storage door:

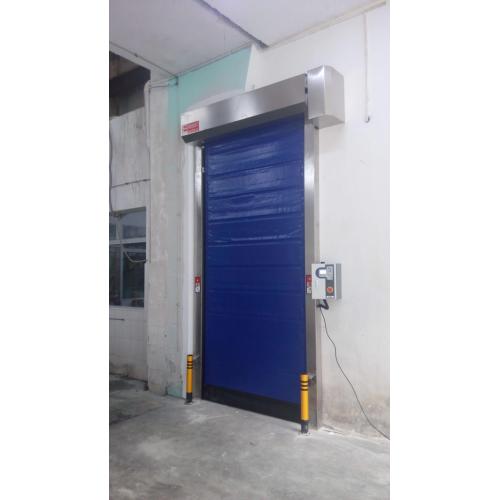

High speed self-repair door for cold room

Its unique system includes the following Characteristic:



● Perfect heating sealing system



● Highly security



● safe and reliable self-repair function



●  Ultra-high speed (adjustable speed)



● smooth operation



● Flexible track upgrade mode



●  No spring, counterweight



● Durable industrial materials



Thanks for purchase our cold  High Speed Door and we can continue to develop the products to satisfied the specific needs of customers. This product has the advantages of energy saving, environmental protection, anti-collision, widely used in medicine, electronic instruments, biological research, green branches, chemical raw materials, logistics and other fields,using portable, easy maintenance.




Specification

Size 6000mm(Max W)*8000(Max H)
Speed  Opening 0.8~ 1.5m/sec (adjustable); closing 0.5~ 0.8m/sec(adjustable)
Motor Turbine decelerator + brake, three-phase 220V
Power  Three-phase 220V AC, 15A
PVC Material PVC Resin 1000 den textile, 0.8mm thickness; low flammability,dust-proof, and UV-proof
Door Frame Material  Galvanized steel, thickness: 2.0mm
Control Panel  PLC, transducer, switching power supply, breaker(With emergency rising and lowering bottoms)
Positioning System Limit Switch/Encoder
Safety Device 1. Korea Photocell Sensor installed on the side tracks
2. Airbag installed on the bottom edge of the door with sensor to react contacts to obstacles.
3. Control: Switches with emergency stopping reacting function.
Command System Five options: radar sensor, magnetic loop, push button, pull rope, remote control.


self-repair door for cold room

Benefits of High Speed Door

1)Saves energy and time by opening and closing the door's opening up to 12 times faster than a traditional sectional overhead door.

2)Allows the same exterior door to be used in both warm & cold weather situations.  Allow air to flow through in summer and keep heat in during cooler months.

3)Significantly reduces heat loss while allowing light into work areas.

4)Keeps out unwanted pests, birds and intruders.

5)Controls airborne contaminants.

6)Improves building appearance.


Feature of HongFa High Speed Door Include:
High speed  Doors require little maintenance and automatically reset after impact or blowout.High speed  Door  also has easily replaceable, exchangeable heat sealed PVC panels

High Speed - Up to 60 inch" per second(adjustable)
Low Maintenance - Aluminium alloy reinforce Girder is loaded between 2 pieces Curtain, can be replaced easily if any curtain broken , save your cost.
Windproof Aluminum alloy reinforce bar won't bend or break. Automatically resets after impact or blow-out,Wind load ratings by door size
Durable -  Resistance to all rot, tear and mildew resistant,
Quick & Easy Installation - Installation video and instruction for you
Very Safe-Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.
Curtain replacement function-Easily replaceable, exchangeable heat sealed PVC panels.
Warranty-12 Months warranty on all door and accessaries

Applications Include:

1)Loading Docks

2)Fork Truck Traffic Areas

3)Garages

4)Interior & Exterior Door Openings

5)Food Processing Facilities

6)Process Areas

7)Waste Areas

8)Plant Overhead Doors




Product Categories : High Speed Door > Self-Recovery Rapid Door
