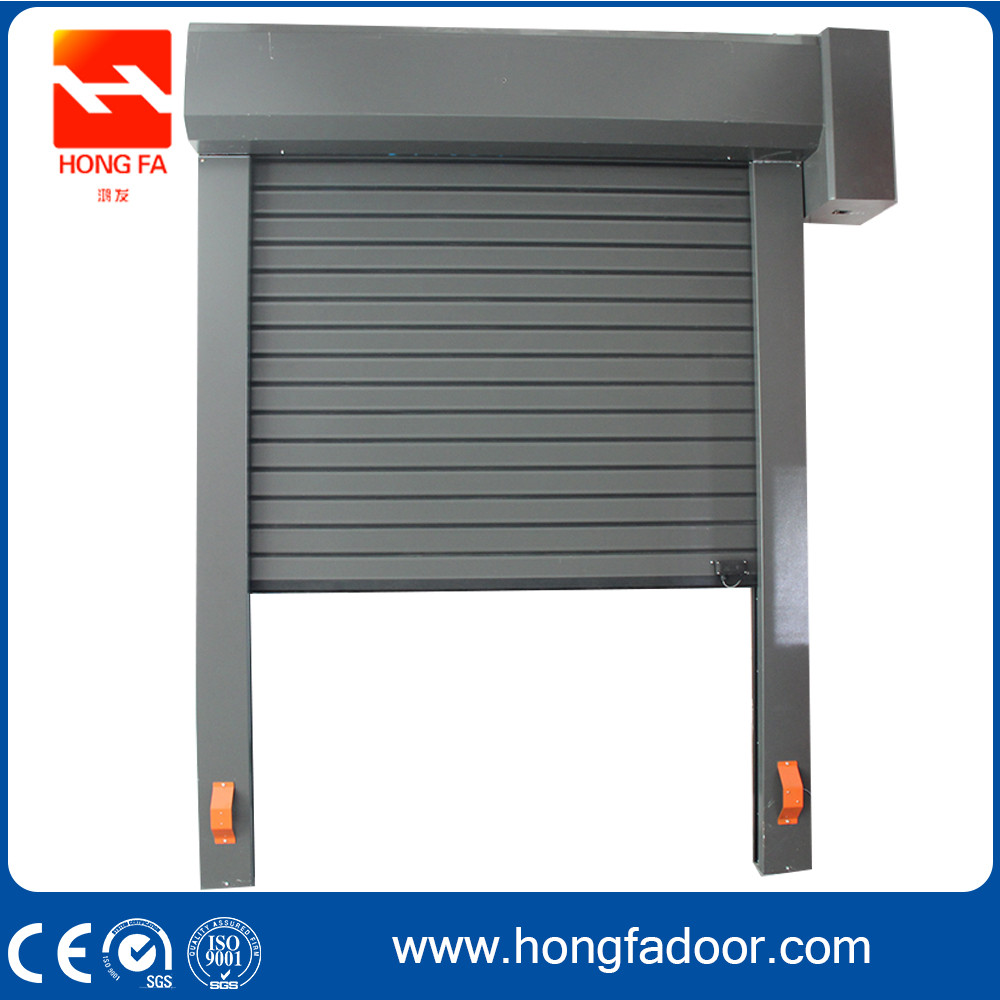

Electrical Aluminum Alloy Metal High Speed Roller Door

Introducing our Electrical Aluminum Alloy High Speed Roller Door, designed for optimal performance and durability. Crafted from lightweight yet robust aluminum alloy, this door ensures rapid operation with speeds up to 40 inches per second, minimizing energy loss and enhancing facility efficiency. Its durable construction resists corrosion and wear, ideal for demanding industrial environments. Equipped with advanced safety features and easy maintenance, this door offers unparalleled reliability, making it an essential upgrade for modern facilities seeking superior functionality and longevity.

Electrical Aluminum Alloy Metal High Speed Roller Door

The Simple Hard Fast Door sets environmental protection, energy saving, sealing, high efficiency, wind resistance, durability, anti-theft in one. The new metal industrial door type with high-speed partition, the door adopts unique heat insulation structure design, featuring good heat preservation effect, light door body, high strength and fast speed. With this type of door, each time the door is opened and closed, the energy consumption of the enterprise can be saved by about 80%.

Main Features:
High Speed,Automatic,security,heat preservation,durable.

Application Scope:

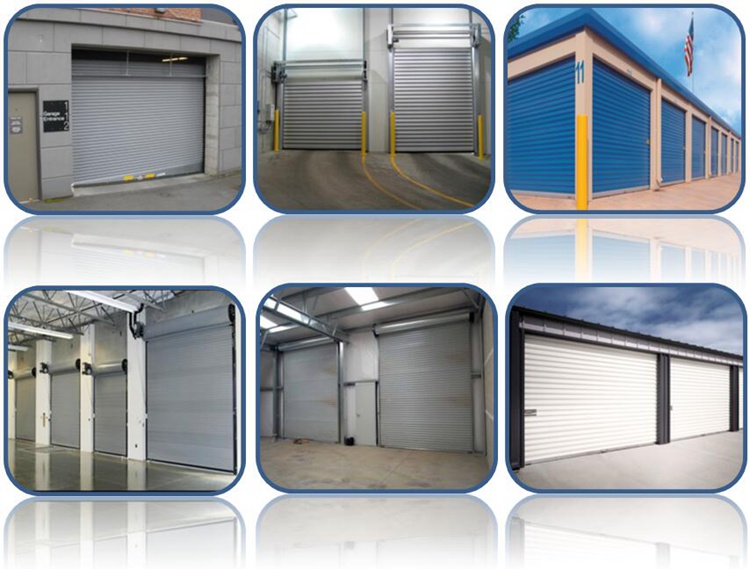

The industrial door is applied to the outdoor passage.

Technical Data:

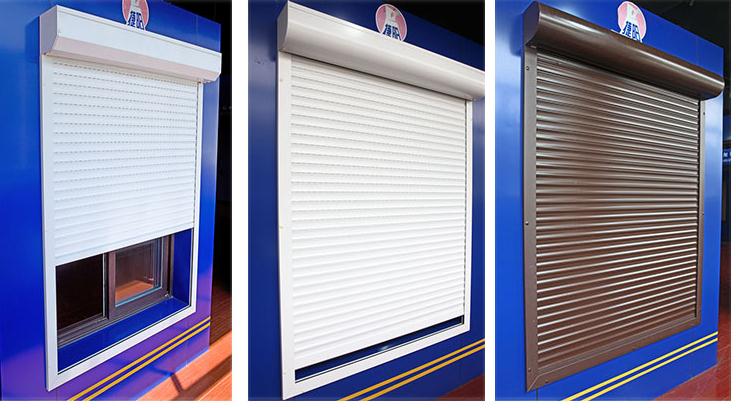

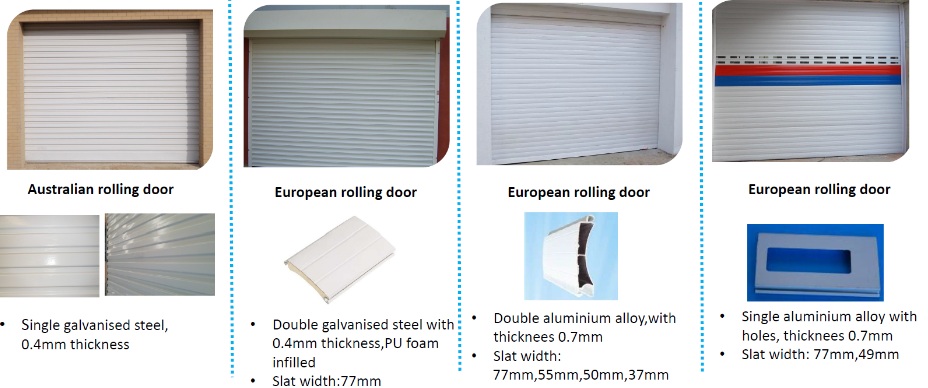

Different color panel for you to choose

The door is widely used in industrial plants in Europe and the United States, easy to use, easy to operate, reliable, and beautiful in appearance. The product is highly reliable, practical, easy to operate and low maintenance costs, and provides a full year warranty after installation. The control system uses the new cutting-edge DSP chip in the field of industrial control as the core, ensuring that there are more than 150,000 fault-free actions per year in the application.

1) Control System

Simple hard fast door adopts special control system, adopts servo special control box, two-phase 220-three-phase 380V-power 0.75-1.5-2.2KW, control box with main power control switch, emergency stop button, manual automatic conversion button , manually control the up and down buttons. Precise control of the opening height of the door.

2) Motor system

The motor drive system adopts a special servo motor system: two-phase 220V-three-phase 380V-power 0.75-1.5-2.2KW, well-known brand encoder; emergency manual opening mechanism;

• 1. Make the functions of safety guards (such as infrared rays) to the best and quickly rebound.
• 2. Strong overload capability. In some high-frequency occasions, the switch can work more than a thousand times a day, which can realize the automatic function conversion of the hand, and ensure the safe operation of the fast door. The control cabinet is set in the workshop, and the lift button must be provided on the outside of the fast door. Easy for outsiders to enter.

3) Security system

• 1. Infrared safety protection electric eye: There are pairs of radio eyes on both sides of the door frame. When there are obstacles under the fast door, the door body keeps open; when the door body descends, there is an object passing through, the door body will open to the open position, and the accessibility is below. The time delay then decreases. An external infrared device can be used to control the rapid rebound of the door. The bounce speed can be easily set by modifying the parameters. It is also possible to determine the function definition of the infrared device by modifying the parameters. For example, when the infrared is touched, whether it is a single-time bounce or a long-term non-moving function, the parameters can be determined by modifying the parameters.
•

• 2. Bottom safety protection side: When the door body is falling, because the object is in the blind zone of infrared safety protection, when the door body is pressed under the obstacle, the door body quickly rebounds upward, effectively protecting the object or pedestrian below, avoiding accident.

4) Wind resistance
Wind resistance is 32 m/s (national standard wind resistance level 12).

5) Sealing performance
Guide rail seal, door panel middle seal, door body top seal, door body bottom seal, multiple seals ensure airtightness and isolation inside and outside the door.

If you are interested in our products, please kindly contact me.
