"Enhance Security and Efficiency with PVC Fast Rolling Shutter Doors"
Model No.: HF-J237
Brand: Hongfa
Material: Stainless Steel
Type: Rolling
Open Style: Rolling
Opening Type: Power Driven
Special Function: Soundproof
Color: Silver
Certification: CE
Position: Industrial
Surface Finishing: Finished
Door Frame: Stainless Steel, Aluminum, Galvanize Steel
Curtain Color: Red , Orange , Yellow , Green , Blue , Black , Gray ,transparent
Name: Chemical Plant Automatic PVC Door
Packaging: Plywood box package
Productivity: 500 sets per month
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 500 sets per month
Certificate: ISO9001, CE,SGS, TUV
HS Code: 7308300000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP

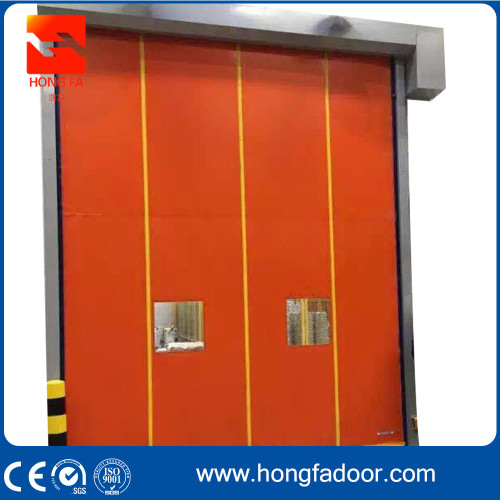

Introducing our PVC Fast Rolling Shutters Door – the ultimate solution for modern industrial and commercial spaces! Crafted from durable, lightweight PVC material, this shutter door offers exceptional insulation, noise reduction, and security. Its rapid-operation mechanism ensures minimal downtime, boosting productivity in busy environments. Sleek and stylish, it seamlessly integrates into any setting while enhancing energy efficiency. Ideal for warehouses, factories, and retail units, our fast rolling shutter door promises durability, ease of use, and unmatched performance. Upgrade your space with this must-have addition today!
PVC rolling shutters and rolling grilles
The soft curtain quick cold storage door has a simple design and is designed with a heating antifreeze device to ensure smooth and efficient operation of the product in a low temperature working environment. The structure incorporates the function design of collision avoidance recovery. When the door body is accidentally impacted, it deviates from the track and automatically repairs the return position during the ascent process. This structure not only facilitates the safe and smooth operation of the door body, but also operates more than 150,000 times a year without failure. It extends the life of the product while reducing component replacement and maintenance costs.
Product details:
Technical classification
Technical Parameters
Heating antifreeze device
The design and application of the heating mechanism avoids the freezing of the guide rail caused by the heat exchange caused by the frequent operation of the door body, further ensuring stable operation and working efficiency of the door body in a low temperature environment. At the same time, it is possible to install and remove the box equipment according to the needs, and doublely guarantee the working performance of the product in a low temperature environment.
Collision recovery structure
In the event of an accidental impact, the curtain can be derailed and automatically reset during the ascent, without manual repair and control unit resetting.
Opening speed Opening speed 0.6-2.5M/S, and can be set
Closing speed
Closing speed 0.6-1.2m/S, and can be set
Curtain
High-strength environmentally-friendly polyester fiber material is added with tear-resistant fabric in the middle. The overall thickness of blue and full-soft curtain is not less than 1mm. The tensile strength is high and the wear resistance is good. There is no friction between the curtains to generate static electricity to attract dust. Fill the insulation material. Applicable temperature: -30~+70°C.
track
The track is made of stainless steel and galvanized paint, and the surface is spray-coated to prevent rust. Door component insulation protection
The control box and other components must meet IP54 and above, and meet the national electrical safety standards, even in harsh environments can be waterproof and dustproof.
Drive System
The professional industrial door HOFIC motor system consists of: high-speed motor for fast door, power supply 220V, power 0.75kw/750 rev / S, carrying large load S4 type. Loss of electric brake system; reducer; manual release mechanism; fault manual device, etc., motor constant torque output:
1, the overload capacity is strong, in some high-frequency occasions, the switch can work more than 2000 times a day.
2.The high resolution resolution of the 2,2000 lines and the fast response of the motor effectively avoid the problem of cumulative errors.
3. The manual release mechanism can be released during a fault or power failure, and the door is manually opened or closed to have an ideal position.
The soft curtain anti-collision fast door has simple structure design, which is beneficial to stable operation, reduces the frequency of repairing and replacing wearing parts, effectively improves the durability and service life of the equipment, and the curtain can be derailed in the event of an accidental impact, and during the ascent Automatic reset, no need to manually repair and reset the whole process.
Heating devices are included on both sides of the column.The structural design of this product is characterized by trouble-free operation up to 150,000 times per year. It has the highest practicality and the lowest maintenance cost.
About the control system:
Using a dedicated (HOFIC) servo system, the core is a DSP chip, and the system receives incremental encoder signals and machinery at the rear of the motor.
The home position switch signal is used to set the door opening height:
--1 The system displays the fault code function through the LED tube;
--2 Steering protection: when the motor drive line is connected incorrectly, the controller reports an error directly, and the door does not move;
--3 The torsion ring, the position ring, the speed ring and the three rings are fully closed;
--4 Capable of braking function, without the electromagnetic brake pad, the motor can be stopped at the expected position, so that the door body stops at the limit position
When it is not bad;
If you have any problems, please kindly contact me.
FAQ
Q1. How many workers in the factory?
A: Our products are warranted for one year and any quality issues during this period are free of charge. Of course, the maintenance rate is less than 1%.
