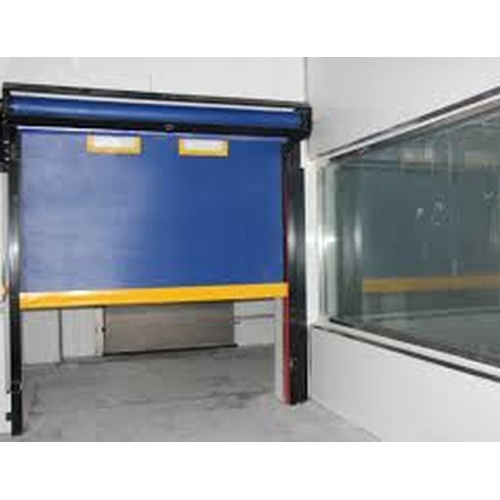

Interior Cold Room used fast shutter door

Introducing the "Arctic Blitz" Cold Room Door – where frost meets fashion! Say goodbye to those slow, clunky doors and hello to swift entry and exit. This state-of-the-art door shatters the chill with lightning-fast speed, opening and closing in the blink of an eye (or a snowflake's fall). Perfect for those who demand both efficiency and style in their cold storage solutions. Keep your cool and your chic game strong. Arctic Blitz: Because even penguins hate waiting in line!

Interior Cold Room used fast shutter door

The soft curtain quick cold storage door has a simple design and is designed with a heating antifreeze device to ensure smooth and efficient operation of the product in a low temperature working environment. The structure incorporates the function design of collision avoidance recovery. When the door body is accidentally impacted, it deviates from the track and automatically repairs the return position during the ascent process. This structure not only facilitates the safe and smooth operation of the door body, but also operates more than 150,000 times a year without failure. It extends the life of the product while reducing component replacement and maintenance costs.

Product details:

The soft curtain anti-collision fast door has simple structure design, which is beneficial to stable operation, reduces the frequency of repairing and replacing wearing parts, effectively improves the durability and service life of the equipment, and the curtain can be derailed in the event of an accidental impact, and during the ascent Automatic reset, no need to manually repair and reset the whole process.

Heating devices are included on both sides of the column.The structural design of this product is characterized by trouble-free operation up to 150,000 times per year. It has the highest practicality and the lowest maintenance cost.

About the control system:

Using a dedicated (HOFIC) servo system, the core is a DSP chip, and the system receives incremental encoder signals and machinery at the rear of the motor.
The home position switch signal is used to set the door opening height:
--1 The system displays the fault code function through the LED tube;
--2 Steering protection: when the motor drive line is connected incorrectly, the controller reports an error directly, and the door does not move;
--3 The torsion ring, the position ring, the speed ring and the three rings are fully closed;
--4 Capable of braking function, without the electromagnetic brake pad, the motor can be stopped at the expected position, so that the door body stops at the limit position
When it is not bad;

If you have any problems, please kindly contact me.
