Automatic door security system photocell sensor

Introducing our state-of-the-art Automatic Door Security System, featuring advanced Photocell Sensors. This cutting-edge solution ensures seamless and secure entry by detecting approaching individuals, activating the door without manual contact. The sleek design integrates effortlessly into any environment, enhancing both safety and convenience. With high-sensitivity sensors and customizable settings, this system provides reliable performance in various conditions. Ideal for businesses and facilities aiming to elevate their security measures while maintaining accessibility and modernity. Upgrade your space with our dependable Automatic Door Security System today!

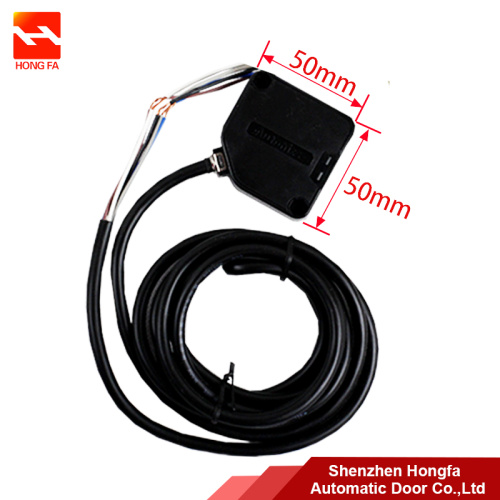

Door Accessories Rolling shutter door security system Autonics photocell sensor

1.Sensing type: Retroreflective (Standard type)

2.Sensing distance: 0.1 to 5m

3.Sensing target: Opaque materials of Min. ø60mm

4.Response time : Max. 20ms

5.Power consumption: Max. 4VA

6.Light source: Infrared LED(850nm)

7.Sensitivity adjustment: Adjustment VR

8.Operation mode: Selectable Light ON or Dark ON by VR

9.Control output: Relay contact output

10.Relay contact capacity: 30VDC 3A of resistive load, 250VAC 3A resistive load

11.Relay contact composition: 1c

12.Relay lifetime: Mechanically: Min. 50,000,000 operation, Electrically: Min. 100,000 operation

13.Light receiving element: Photo IC

14.Indicator: Operation indicator: red, Stability indicator: green(The red lamp on Emitter of transmitted beam type is for power indication)

15.Insulation resistance: Min. 20MΩ(at 500VDC megger)

16.Insulation type: Double or strong insulation (Dielectric voltage between the measured input and the power: 1kV)

17.Noise resistance: ±1,000V the square wave noise(pulse width : 1) by the noise simulator

18.Dielectric strength: 1000VAC 50/60Hz for 1 minute

19.Protection:IP50(IEC standard)

20.Material: Case, Case cover: Heat resistant ABS

21.Sensing part: PC(with polarizing filter: PMMA) :Unit weight

22.Approx. 208g

23.Individual:Reflector(MS-2)

24.Common:VR adjustment driver, Mounting bracket, Bolts/nuts

FAQ of Door Accessories Autonics Series Fiber Optic Sensor Photocell

Q1. How many workers in the factory?
A: We have more than 50 workers.
Q2. What`s the monthly capacity?
A: Our capacity is 2000set per month.
Q3. OEM/ODM are available?
A: Yes
Q4. Can I have a sample for quality check?
A: Yes, we can provide sample.
Q5. What is the minimum quantity for each order?
A: Normally 1set,but we also support a small quantity if you can accept a higher price.
Q6. What is the production time ?
A: Normally it is 3-5days,depending on how many quantity you order.
Q7. What is the payment term?
A: Our payment term are T/T and L/C at sight.
Q8. How do you gurantee the quality?
A: Our product is guaranteed for one year, and any quality problems during this period are supported by free maintenance. Of course, the rate of maintenance is below 1%.
