"Boost Efficiency and Maintain Optimal Temperatures with High-Speed Doors for Cold Rooms"
Model No.: HF-003
Material: Stainless Steel
Type: Rolling
Open Style: Rolling
Opening Type: Power Driven
Special Function: Soundproof
Color: Red
Certification: CE
Position: Industrial
Surface Finishing: Finished
Packaging: wooden case
Productivity: 1-100sets
Transportation: Ocean,Land,Air
Place of Origin: China
Certificate: ISO9001, CE
HS Code: 73083000
Port: ShenZhen,GuangZhou,HongKong
Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,CIF
Introducing the SwiftGlide High Speed Door – the ultimate solution for your cold room needs! With its rapid open-close mechanism, this door minimizes temperature loss and boosts energy efficiency. Constructed from durable materials, it ensures long-lasting performance even in the harshest conditions. The sleek design not only enhances your facility's aesthetics but also improves workflow with minimal downtime. Say goodbye to traditional doors and welcome unparalleled convenience and savings with SwiftGlide!

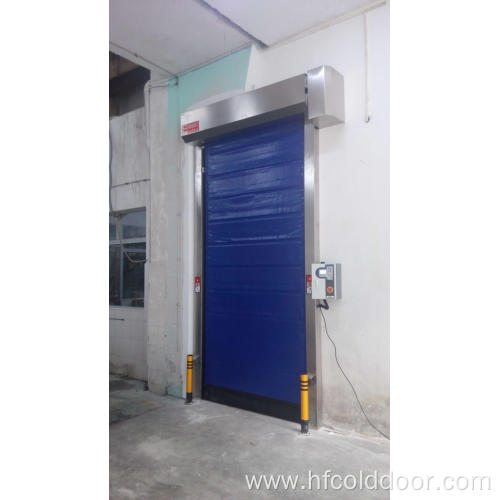

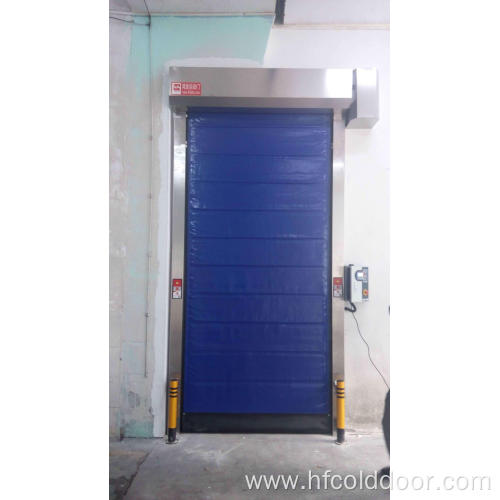

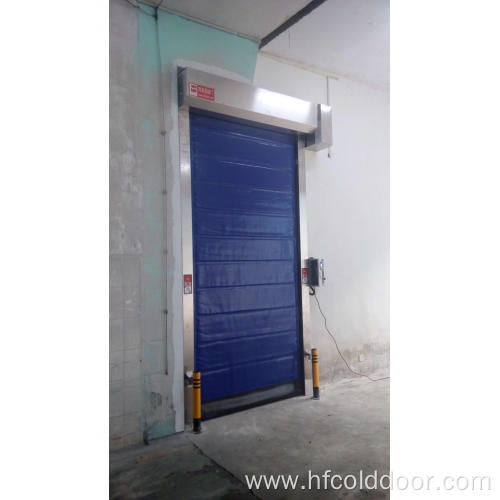

This High Speed Door is especially desinged for the cold room!
This flexible rapid door ensures excellent quality that responds to science prerogatives, according to the regulations of companies operating at the highest level of hygiene. Through the rapid door for these special areas You can get a beautiful product in industrial environments where You have to get very high minimum standards of hygiene.
Specification
| Size | 6000mm(Max W)*8000(Max H) |
| Speed | Opening 0.8~ 1.5m/sec (adjustable); closing 0.5~ 0.8m/sec(adjustable) |
| Motor | Turbine decelerator + brake, three-phase 220V |
| Power | Three-phase 220V AC, 15A |
| PVC Material | PVC Resin 1000 den textile, 0.8mm thickness; low flammability,dust-proof, and UV-proof |
| Door Frame Material | Galvanized steel, thickness: 2.0mm |
| Control Panel | PLC, transducer, switching power supply, breaker(With emergency rising and lowering bottoms) |
| Positioning System | Limit Switch/Encoder |
| Safety Device | 1. Korea Photocell Sensor installed on the side tracks 2. Airbag installed on the bottom edge of the door with sensor to react contacts to obstacles. 3. Control: Switches with emergency stopping reacting function. |
| Command System | Five options: radar sensor, magnetic loop, push button, pull rope, remote control. |
Benefits of High Speed Door
1)Saves energy and time by opening and closing the door's opening up to 12 times faster than a traditional sectional overhead door.
2)Allows the same exterior door to be used in both warm & cold weather situations. Allow air to flow through in summer and keep heat in during cooler months.
3)Significantly reduces heat loss while allowing light into work areas.
4)Keeps out unwanted pests, birds and intruders.
5)Controls airborne contaminants.
6)Improves building appearance.
Feature of HongFa High Speed Door Include:
High speed Doors require little maintenance and automatically reset after impact or blowout.High speed Door also has easily replaceable, exchangeable heat sealed PVC panels
High Speed - Up to 60 inch" per second(adjustable)
Low Maintenance - Aluminium alloy reinforce Girder is loaded between 2 pieces Curtain, can be replaced easily if any curtain broken , save your cost.
Windproof - Aluminum alloy reinforce bar won't bend or break. Automatically resets after impact or blow-out,Wind load ratings by door size
Durable - Resistance to all rot, tear and mildew resistant,
Quick & Easy Installation - Installation video and instruction for you
Very Safe-Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.
Curtain replacement function-Easily replaceable, exchangeable heat sealed PVC panels.
Warranty-12 Months warranty on all door and accessaries
Applications Include:
1)Loading Docks
2)Fork Truck Traffic Areas
3)Garages
4)Interior & Exterior Door Openings
5)Food Processing Facilities
6)Process Areas
7)Waste Areas
8)Plant Overhead Doors
Product Categories : High Speed Door > Self-Recovery Rapid Door
