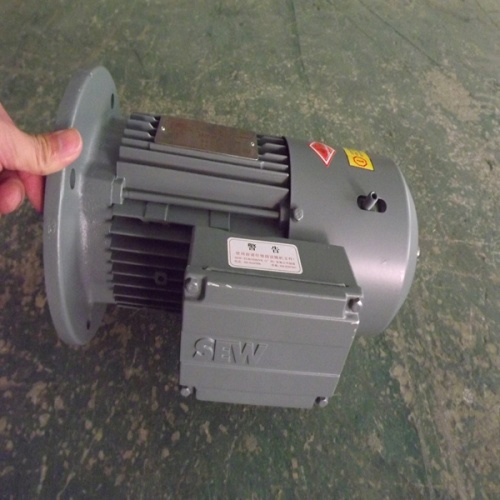

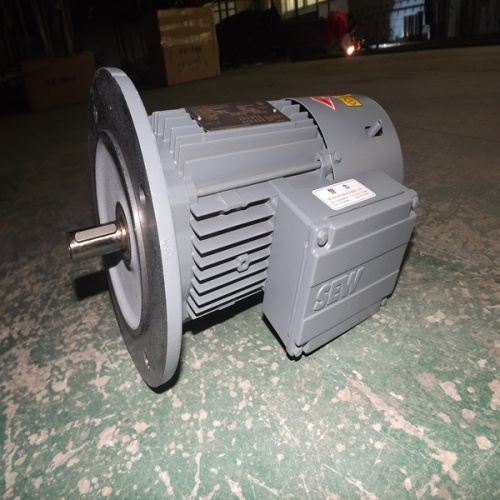

### Germany SEW High Speed Roller Door Motor
Model No.: HF1001
Application: Industrial
Speed: High Speed
Number Of Stator: Single-Phase
Function: Control
Casing Protection: Open Type
Certification: Iso9001
Packaging: carton box
Transportation: Ocean,Land,Air
Port: Shenzhen
Payment Type: T/T,Paypal
Incoterm: FOB,CFR,CIF
Introducing the Germany SEW High Speed Roller Door Motor, designed for unparalleled efficiency and durability. Engineered with state-of-the-art technology, this motor offers rapid opening and closing speeds, enhancing security and convenience. Its robust construction ensures longevity, while the energy-efficient design reduces operational costs. Equipped with advanced safety features, it complies with strict European standards. Ideal for commercial and industrial settings, this motor guarantees smooth, quiet operation even under heavy use. Upgrade your facility’s access control with the Germany SEW High Speed Roller Door Motor – where performance meets reliability.
Three Phase AC Induction Motors / High Speed Roller Door Germany SEW Motor
Type Gear Motor Dimension 60mm,70mm,80mm,90mm,104mm Power 100W,200W,400W,750W,1500W,2200W,3700W Voltage Single Phase 110V/220V Gear ratio 3, 3.6, 5, 6, 7.5, 9, 12.5 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 150, 180,200 ~750 Shaft Type Parallel shaft Using humidity ≤85%(Place without dew) Using temperature -10℃~+40℃(No freeze) Insulation class Class B (130℃) Temperature rise The temperature rise should be lower than 80℃ measured Insulation voltage In the circumstance of normal temperature and humidity, Insulation resistance In the circumastance of normal temperature and humidity, Bearing Type Ball Bearing(Mark KB for Type GU square case) Gear type(Gearbox) GU:General Helical Gear; GN:Reinforced Helical Gear Shape of Motor Shaft A:Flat type; A1:Milling Keyway; GU:General Helical Gear;
Three Phase 220V/380V
by resistance method when the motor is working.
there will be no problem supplying the power of 1500V 50/60Hz between the metal wiring and motor shell in 1 minute while the motor is working.
the resistance can be up to 100MΩ,measured by DC 500V
insulation resistance measurer between the motor wiring
and motor shell while the motor is working
GN:Reinforced Helical Gear
