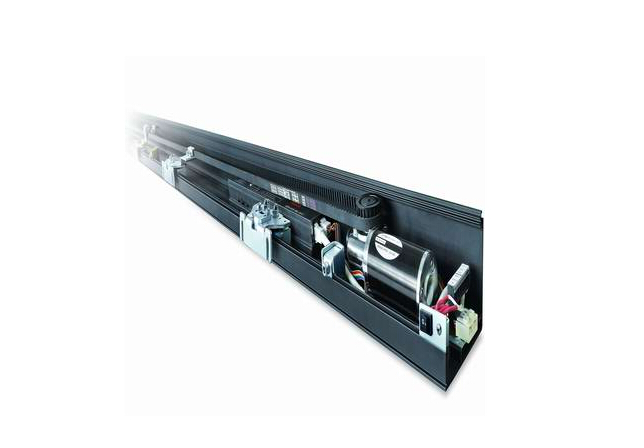

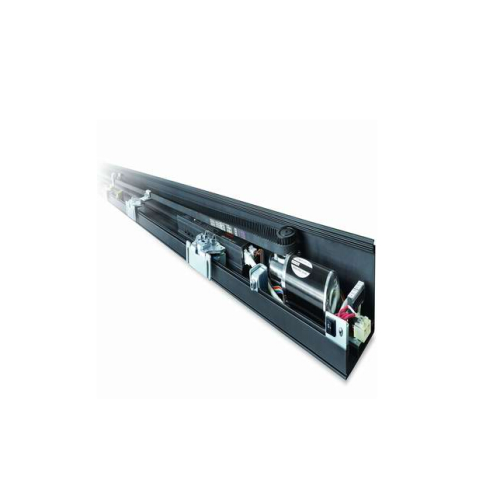

Remote Control Automatic Sliding Door Operators

Introducing our advanced Remote Control Automatic Sliding Door Operators, designed for seamless entry and exit in commercial and residential spaces. Equipped with state-of-the-art infrared sensors, these operators ensure smooth and safe door movement. Operate effortlessly with a user-friendly remote control or integrate with existing security systems for enhanced convenience. Durable, weather-resistant construction guarantees reliable performance in all conditions. Upgrade your space with our innovative solution for accessibility and style. Ideal for businesses, homes, and public facilities seeking modern automation.

Remote Control Automatic Sliding Door Operators

The High Speed Door is widely used in industrial places such as dust-free workshops, and has the functions of heat preservation and moisturizing. Because it is fast-switching and can be activated frequently in one day, it is called a quick door. The quickest door can be quickly switched and frequently used, the biggest helper is a complete motor system.

Motor

The motor is brushless 24 volt DC with in-built optical sensor for precise movement, operation is silent and maintenance free, delivering high torque and high operating speeds.
Controller
The intelligent controller unit can be programmed for connection to any security/alarm systems, is self monitoring and calibrating, has memory for all data on door stoke and brake positions.

UPS

The operator has built-in uninterrupted power supply (Battery back up) operation and security during power failure.
Belt Drive
Drive is by way of toothed belt, which is reinforced with fiberglass tensile members, and has nylon facing surface for tooth protection on the pulleys. This combination produces silent accurate operation.
Tracking The track is self-cleaning duel linear. The upper track is made of harder stronger alloy 6351T6, and can be replaced without moving the transom. The wheel trolley is fitted with anti-rise wheels, resulting in very firmly fitted doors with operation free of any racking.

Locking

Electromechanical Locking: An electric lock option is available to give total security and can be adapted where manual locking cannot be achieved, i. E. Frameless toughened Glass doors. Lock is the microprocessor controlled electric locking system. The microprocessor monitors all aspects of the lock functions. E. G. To ensure the door is fully closed when the lock is 100% engaged. Terminal outputs are available to signal to security system both door positions and lock status.

Safety

Door operation will automatically reverse in either direction if movement is obstructed, the sensitivity setting is programmable.
Warranty
Being covered by a 18 months parts warranty

Controller:

1. With long serve life, controller Uses the advanced CPU chip processing control system. Operating parameter be demonstrated in digital.
2. Parameter is adjusted conveniently and nimberly.
3. Can link to entrance manage system

Motor

Controller

 Toothed belt

 Optional accessaries

Package
