"Boost Efficiency and Safety with Advanced Automatic Roll-Up Doors Featuring Servo Brushless Motors"
Model No.: HF-IP54
Brand: HOFIC
Certification: CE
Position: Industrial
Phase: Single-phase
Frequency: 50/60 Hz
Protection Class: IP44/IP54
Output Power: 750W/1500W 4A 220V
Type: Servo Motor
Protect Feature: Totally Enclosed AC
AC Voltage: 220v/380v/110v
Voltage: Efficiency IE 4
Limit Mode: Absoluto Encoder(built-in And External)
Suitable Door Size:: 1-27 ㎡
Packaging: Plywood case or Cardboard , suitable for sea freight or air freight
Productivity: 10000 Set/Sets per Month
Transportation: Ocean,Land,Air,DHL
Place of Origin: Guangdong, China (Mainland)
Supply Ability: 10000 Set/Sets per Month
Certificate: CE SGS ISO:9100
HS Code: 73083000
Port: Shenzhen
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Introducing our advanced Roll-Up Doors Automatic Servo Brushless Motors, designed for seamless and efficient operation. Featuring state-of-the-art brushless technology, these motors deliver unparalleled reliability and durability. With quiet operation and low maintenance requirements, they ensure smooth door movement every time. Equipped with built-in safety features and compatible with various control systems, these motors provide enhanced security and convenience. Ideal for commercial and industrial applications, they offer effortless automation for roll-up doors, enhancing both functionality and aesthetics. Upgrade your space with our premium, long-lasting motors today.
High Speed Door ac servo motor
Product composition
Motor Description
| Model | Description | Power |
| PE200 | high speed door servo systerm | 750W servo motor+10 times RV63 reducer |
| PE2000 | Ultrahigh speed high speed door servo systerm | 750W servo motor+7.5 times RV63 reducer |

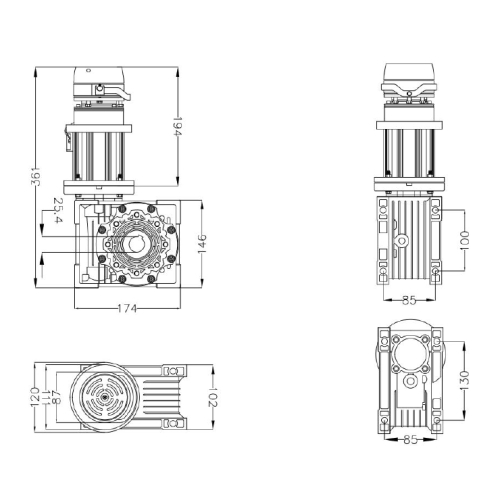

| PE500 | High Speed Spiral Door servo systerm | 1500W servo motor+10 times RV63 reducer |
Motor Specifications
| Model | PE200 | PE2000 | PE500 |
| Rated output | 750W | 750W | 1500W |
| Speed | 0-2000rpm | 0-2000rpm | 0-2000rpm |
| Rated output speed | 0-200rpm | 0-260rpm | 0-200rpm |
| Maximum Torque | 100N.M | 75N.M | 150N.M |
| Rated torque | 35N.M | 30N.M | 50N.M |
| Temperatuer rise | <30°C | <30°C | <30°C |
| Operating Temperatuer | -40°C-60°C | -40°C-60°C | -40°C-60°C |
| Torque managment systerm | Torque servo systerm | Torque servo systerm | Torque servo systerm |
| Adaptation door area | 2-20 square meter | 2-15 square meter | 2-35 square meter |
| Limit mode | Absolute Encoder | Absolute Encoder | Absolute Encoder |
| Manual release | lectro mechanical hand wheel/winch | ||
| Self-locking mode | Electro mechanical brake | Electro mechanical brake | Electro mechanical brake |
| Weight | 10kg | 10kg | 28.8kg |
What's the feature of the servo motor?
precision the systerm use full closed-loop servo control and double encoder design ,this is to ensure long operating life and to prevent overshooting during operating stability the systerm utilizes integrated design concept ,in order to simplify internal wiring and to prevent malfunction cause by wiring and terminal connections high speed motor max speed is 2500rpm ; door max operating speed is 2m/s smooth the torque servo systerm can adjust torque to the load automatically ,and its use S speed curve mode step less speed regulating to ensure a smooth operation. custom-made each systerm's operating control order and mode can be custom made to suit each door ,to ensure max operating condition . The systerm has a unique order and more memory mode and one key recover mode. safety the systerm has a build in emergeny stop signal and control order ,the motor can be ativated within 30 millsecond after receive the order ,to ensure maximum safety. high usage the systerm is benign to suit continuous high usage,and it can applied to high frequency high speed passage way . energy efficiency the rare earth permanent magnet synchronous motor utinizes rare earth PMSM'S output and overload are twice higher han the asynchronous motor ,also compare to the asynchronous motor, the rare earth PMSM is more energy efficient ,lighter, has a slower heating rate ,and bigger torque.
